Ice Cream Plant

  • Material: SUS304
  • Capacity: 500L/Batch
  • Loading Port:Qingdao Port
  • Warranty:12 Months
  • Quote Form:FOB, CIF, EXW, CFR
Features

Ice Cream Plant

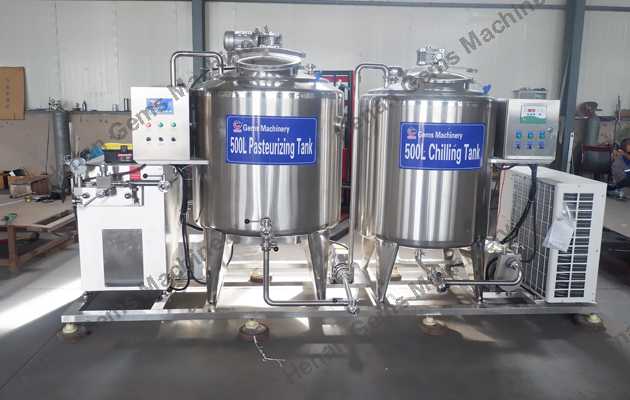

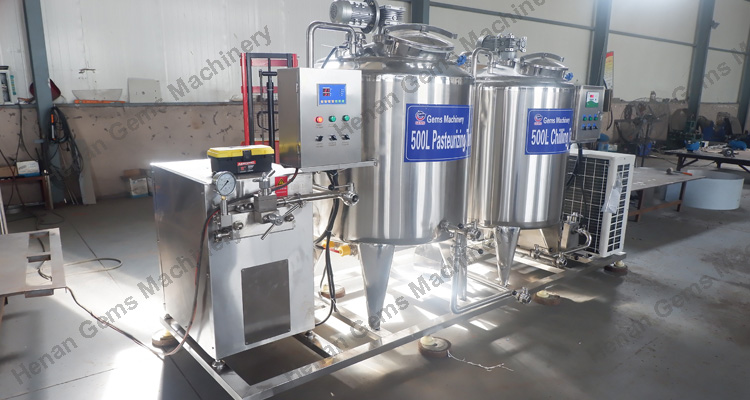

Ice cream plant is combination with homogenizer, pasteurizer and cooling tank, after cool the milk at 4℃, pass it to continuous ice cream freezer to make ice cream, and then you can fill into cartons one by one.

We made this combination ice cream plant for Chile customer who made ice cream. Homogenize milk first and then pass to pasteurizer tank to pasteurize milk at 85℃ for a while, you also can add some sugar or additives into it. We will install a high shear mixing device to mix them well. And the final tank is cooling tank which is used for cooling pasteurized milk at 4℃.

For Ice cream freezer, it requests the temprature of milk must below 5℃.

ice cream plant-6.jpg

Technical Data
ItemHomogenizerPasteurizerCoolerIce Cream Freezer
Capacity500L/h500L/batch500L/Batch300L/h
Power5.5kw24kw+0.37kw agitator3P+0.37kw agitator10kw
MaterialSUS304
