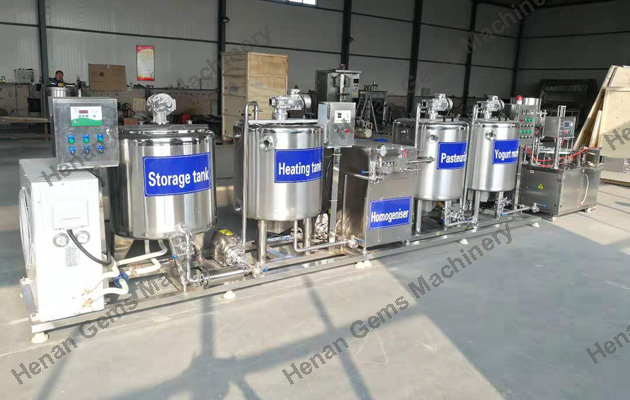

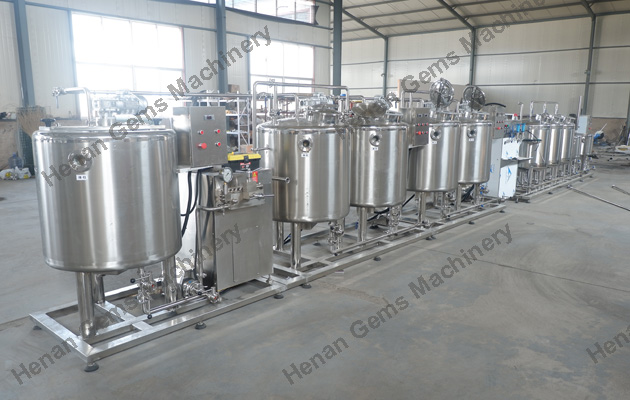

Small Yogurt Processing Machine Plant

Small Yogurt Processing Machine Line

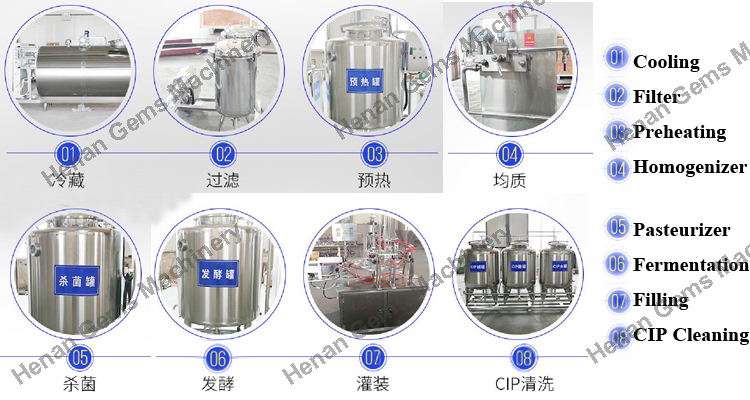

This Yogurt Processing Line is combined with the following items:

Milk Cooling Storage Tank

The raw milk is stored in a storage tank, and the temperature in the tank is set to 3-6 ° C. The fresh milk passes through a single filter to filter impurities of the fresh milk and finally enters the preheating tank through the milk pump.

Milk Preheating Tank

1. Eliminate most other organisms to increase the shelf life of the product

2. Make the protein have a certain degree of denaturation. This improves the consistency and viscosity of the yogurt and prevents the separation of whey.

Milk Homogenizer

1. Improved the consistency of yogurt

2. Yogurt looks whiter and has a more creamy and richer flavor than non-homogenous yogurt

3. Better distribute stabilizers in the system shapes.

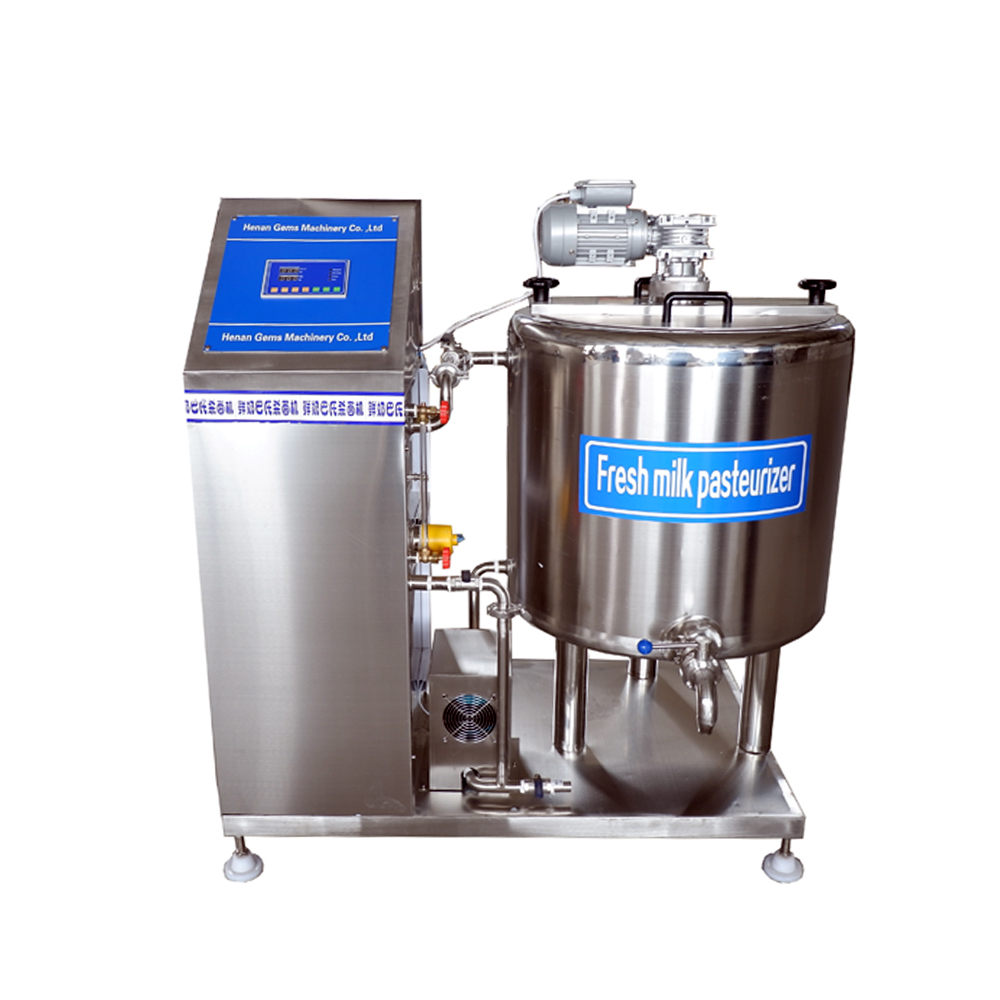

Milk Pasteurizing Tank

Before the fresh milk pasteurization process is started, it is necessary to ensure that the water level of the pasteurizer is reached at the water level mirror. Set the temperature (usually set temperature 85 ° C). Turn on pasteurization heating and stirring. When the milk temperature reaches

85 °C, and the pasteurization will be completed.

Milk Fermentation Tank

Before the fermentation process is started, the temperature of the fermenter is usually set at 43 ° C, the fermentation time is usually 8 hours, the fermentation heating is started, and the fermentation is stirred. After the milk temperature has reached 43 degrees, the corresponding strain is added and the yogurt is fermented. After 8 hours, the yogurt fermentation process will sound an alarm.

Yogurt Filling Machine

We have 2 types yogurt filling machine, one is used for filling yogurt into plastic bottles and the other is used for filling yogurt into cups. For cups, we can customize the cup shape and fill yogurt automatically
